Puritan Bennett type
Бренд - Silbermann, LLC

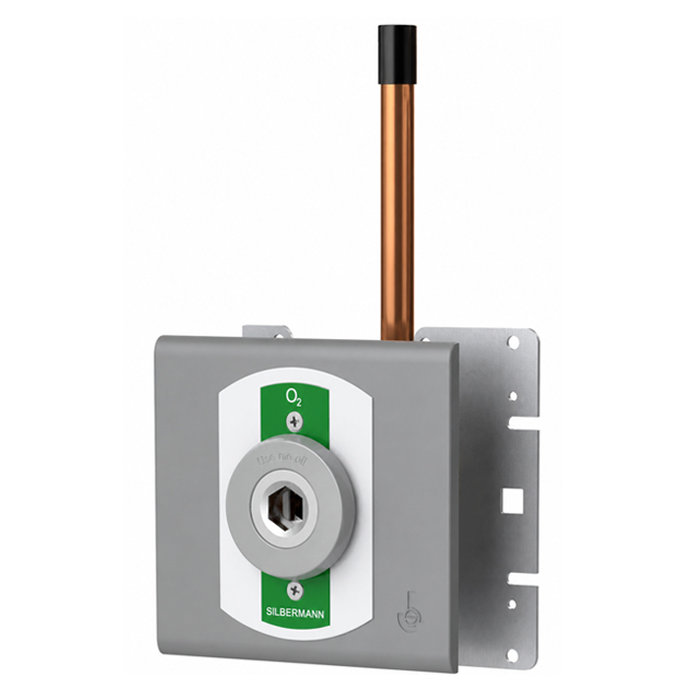

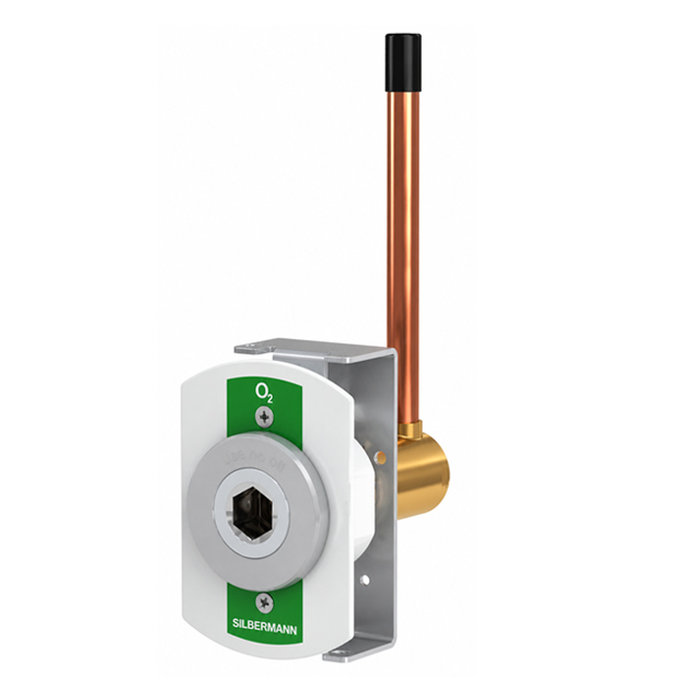

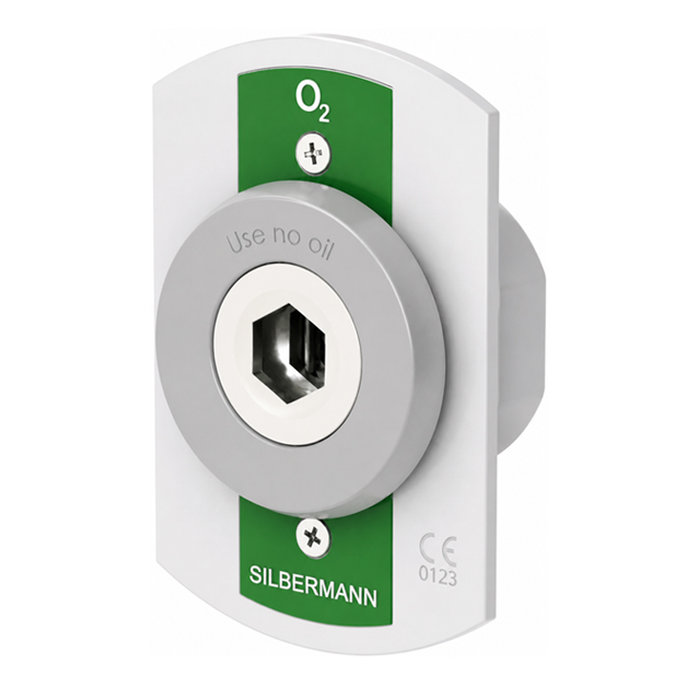

Silbermann’s Puritan Type gas outlet, designed for heavy-duty use in hospitals and critical care environments.
offers long-lasting performance with minimal maintenance requirements.
We build our Medical Gas Outlets (Terminal Units) to last, making sure patients and medical equipment get a steady, reliable gas flow.
All outlets are tested to ensure constant flow and leak-free performance, and are cleaned for oxygen service before shipping.
Silbermann's Puritan Bennet type outlets are carefully designed to enhance a comfortable and pleasant environment for patients and medical staff.
Available in various gas types such as: Oxygen, Vacuum, Medical Air, and Nitrous-Oxide.
Versatile mounting option: wall mounting, pendant mounting, and panel mounting.
Accepts Puritan Bennett-type gas-specific adapters.
The Puritan Bennet outlets undergo rigorous testing, including a thorough leak check. Each outlet is assembled, degreased, and cleaned to meet the requirements of hospital medical gas applications.
The gas-specific indexed design reduces the risk of connecting equipment to the wrong medical gas service.
360-degree swivel inlet pipe for ease of installation.
VITON seals in the front assembly (latch valve) help reduce maintenance needs and support reliable operation
Modular singles – designed to provide ganging of rough-in modules in the field to form multiples in any order with 120mm spacing.
Medical Gas System Standards: NFPA99 requirements.
Applicable Standards: ISO 9170-1.
Silbermann’s Quality Management System: CE marked by the notified body TÜV-SÜD.
The medical gas outlet shall be SILBERMANN Puritan Bennett-type manufactured according to ISO 9170-1.
The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin-indexed rough-in module.
The outlet of positive and negative pressure shall consist of primary and secondary check valves to allow testing and online maintenance.
The outlet shall be manufactured 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. The rough-in pipe shall be silver-brazed on the outlet body.
With the rough-in mounted, the outlet shall be depth adjustable to compensate for various wall thicknesses.
The quick-connect outlet shall comply with ISO 9170-1 standard type and accept only the corresponding Puritan Bennet gas-specific adapter.
Pressure drop of less than 20 Kpa through the outlet at 120 LPM and 350 Kpa (3.5 Bar) inlet pressure.
When fully open, the outlet allows a flow of up to 600LPM and a pressure of 400 KPa (4 Bars).
